INTENSA MRM0230 – MRM0340 – MRM0380 – MRM0625

RGBW CREE
  • Anodized Aluminium Casing
  • 2, 3 or 6 High-Power LEDs

  • Different Face Shapes

  • Warm White, Daylight White, Blue, Green, Red or RGBW Multi-Color Lighting

  • Reflecor with Holographic Diffuser
  • Microprocessor Control

  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption

  • Simple Installation

The INTENSA series of compact LED light with electronic driver built-in waterproof anodized aluminium casing designed by using 2, 3 or 6 high-power LEDs with built-in microprocessor which enables network connections and remote control with digital dimming.

Multi-color RGBW models offer the best illumination quality of different white lighting and microprocessor controlled changing of white and all other colors of lighting manually or automatically through the complete rainbow spectrum. The light is designed to adjust the requested white lighting in 21 steps.

Built-in ASTEL protocol enables complete lighting control by using optional DMX512 interface MXU01.

Advanced optical system with reflector and holographic diffuser allows perfect light spread with different color temperature options for interior and exterior.

Due to wide range of prestige massive face shapes made of aluminium or stainless steel the INTENSA is suitable to fit on both luxury yachts and superyachts.

All models are designed for operating at extreme temperature and voltage conditions with thermal, transient and reverse polarity protections.

Control

I Internal dimming control, 2-wire system
E External dimming control, 3-wire system

Front shape

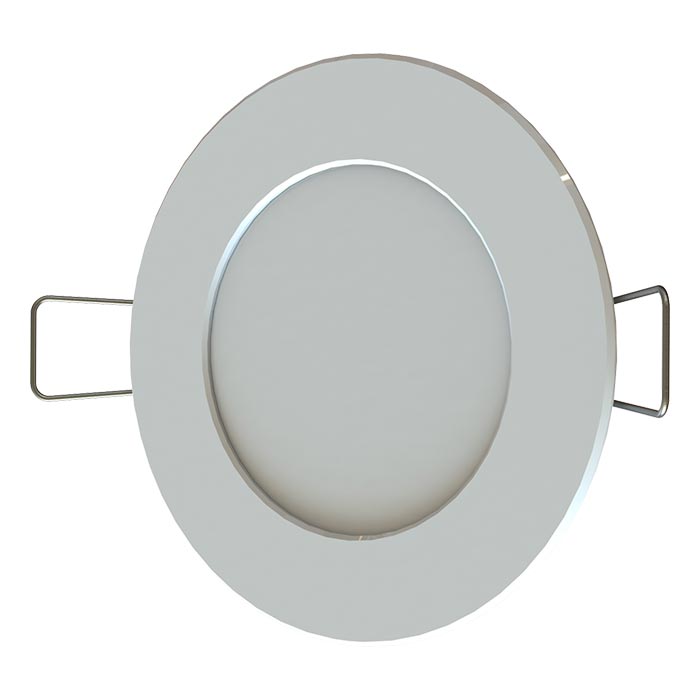

MAW Round, modern, painted white aluminium

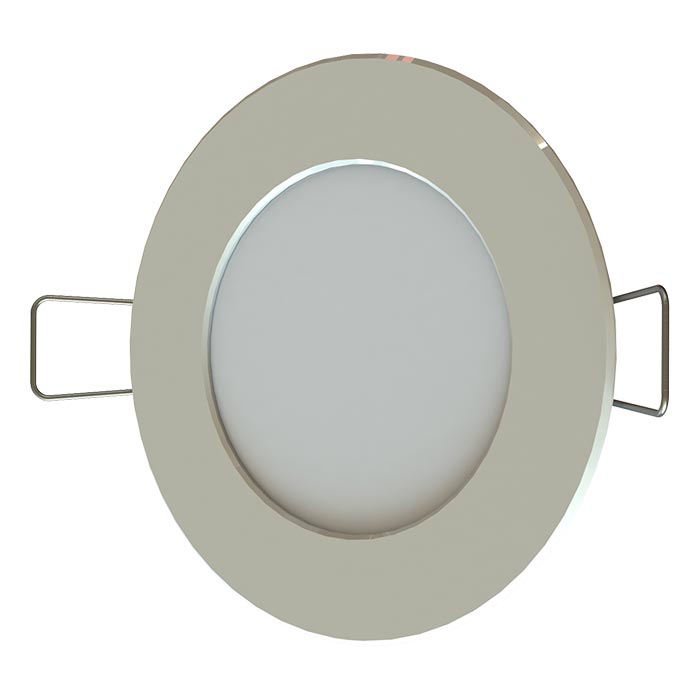

MAB Round, modern, painted beige aluminium
MSP Round, modern, polished stainless steel

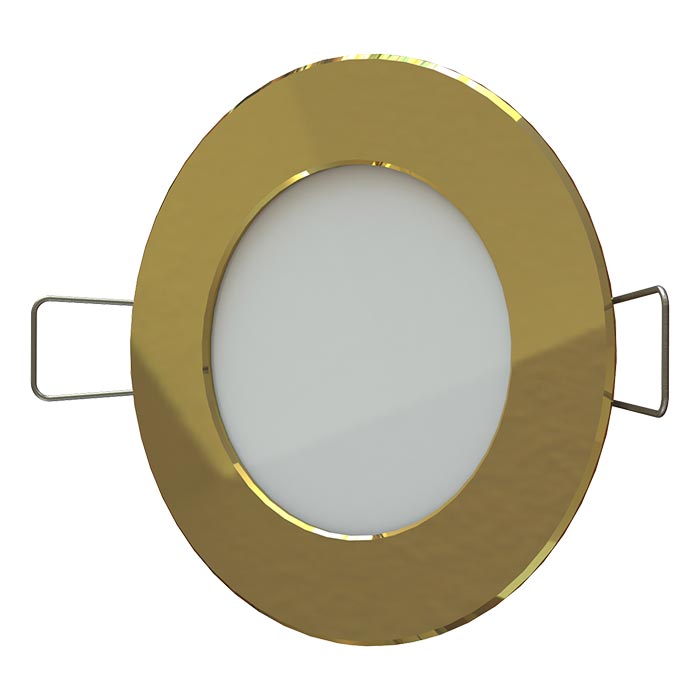

MSG Round, modern, polished gold (PVD) stainless steel

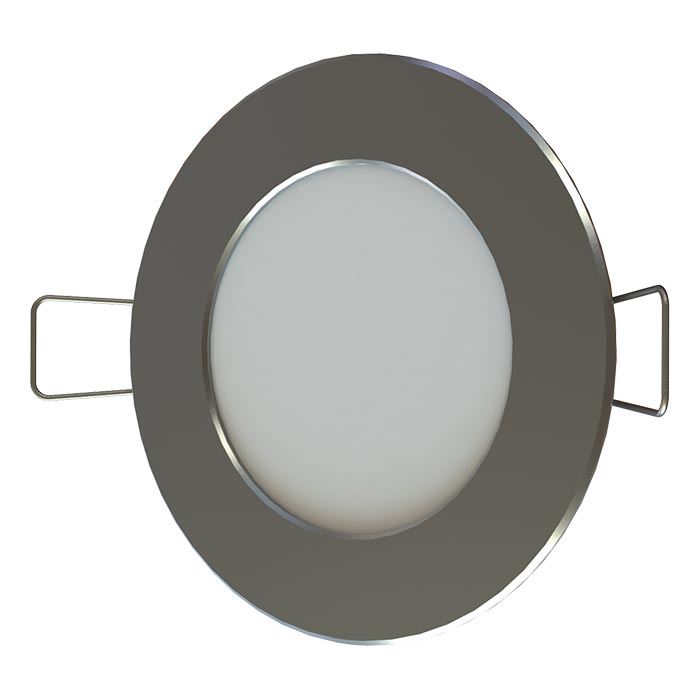

MSS Round, modern, satin stainless steel

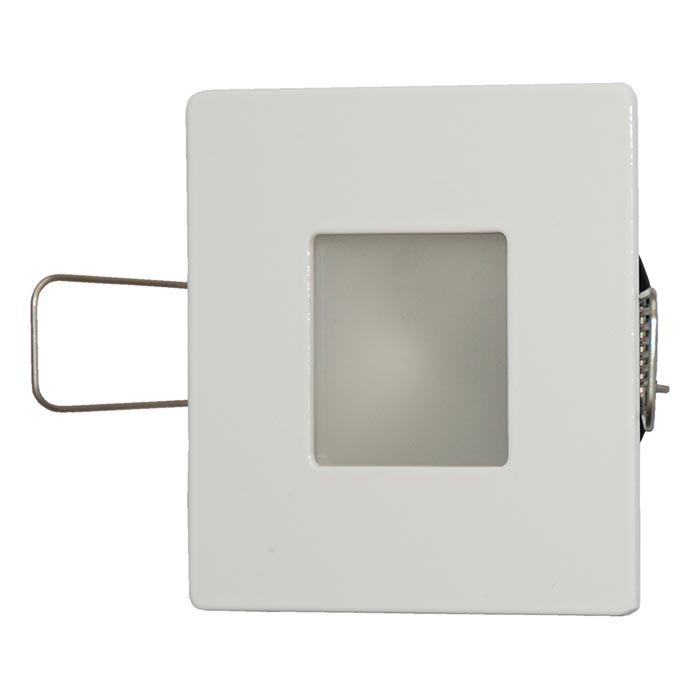

QMAW Square, modern, painted white aluminium
QMAB Square, modern, painted beige aluminium
QMSP Square, modern, polished stainless steel
QMSG Square, modern, polished gold (PVD) stainless steel
QMSS Square, modern, satin stainless steel

Color of lighting – INTENSA MRM0230 and MRM0340

W warm white
D daylight white
B blue
G green
R red

Color of lighting – INTENSA MRM0380

W warm white
D daylight white

Color of lighting – INTENSA MRM0625

M RGBW multi-color

Technical Specifications

Power supply 12–24 Vdc, max. 500 mA/12Vdc or max. 260 mA/24Vdc (MRM0230)
12–24 Vdc, max. 800 mA/12Vdc or max. 420 mA/24Vdc (MRM0340, MRM0380)
12–24 Vdc, max. 650 mA/12Vdc or max. 350 mA/24Vdc (MRM0625)
Lens angle 130°
Optical window High grade polycarbonate glass
Luminous flux max. 530 lm (MRM0230)
max. 800 lm (MRM0340)
max. 1.300 lm (MRM0380)
max. 550 lm (MRM0625)
White color temperature 4500K (daylight) or 3000K (warm) (MRM0230, MRM0340, MRM0380)
Adjustable, from 2500K to 7500K in 21 steps (MRM0625)
Casing Black anodized aluminium
Dimensions Ø105mm X 30mm
Mounting hole Ф79mm x 29mm
Weight Aluminium front shape 190g
Stainless steel front shape 250g
