INTENSA MRM0110

RGBW CREE
  • Innovative Design
  • Anodized Aluminium Casing
  • 1 High-Power LED or LED Array Design

  • Different Face Shapes and Finishes

  • Warm White, Daylight White, Blue, Green, Red or Multi-Color RGBW Lighting
  • Reflecor with Holographic Diffuser
  • Microprocessor Control
  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption
  • Simple Installation

The INTENSA series of compact LED light with electronic driver built-in waterproof anodized aluminium casing designed by using 1 high-power LED or LED Array with built-in microprocessor which enables network connections and remote control with digital dimming.

Multi-color RGBW models offer the best illumination quality of different white lighting and microprocessor controlled changing of white and all other colors of lighting manually or automatically through the complete rainbow spectrum. The light is designed to adjust the requested white lighting in 21 steps.

Built-in ASTEL protocol enables complete lighting control by using optional DMX512 interface MXU01.

Advanced optical system with reflector and holographic diffuser allows perfect light spread with different color temperature options for interior and exterior.

Due to wide range of prestige massive face shapes made of aluminium or stainless steel the INTENSA is suitable to fit on both luxury yachts and superyachts.

All models are designed for operating at extreme temperature and voltage conditions with thermal, transient and reverse polarity protections.

Control

I Internal dimming control, 2-wire system
E External dimming control, 3-wire system

Color of lighting

W warm white
D daylight white
B blue
G green
R red
M RGBW multi-color

Front shape

MAW Round, modern, painted white aluminium
MAB Round, modern, painted beige aluminium

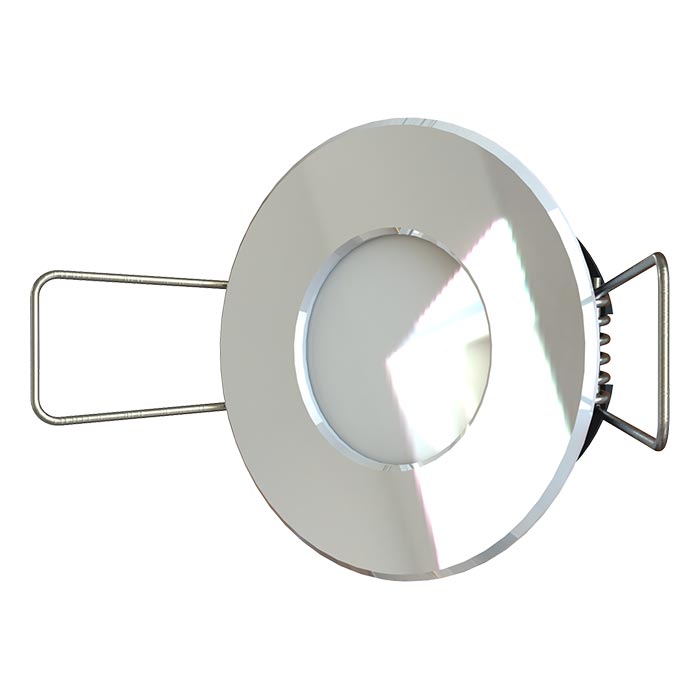

MSP Round, modern, polished stainless steel

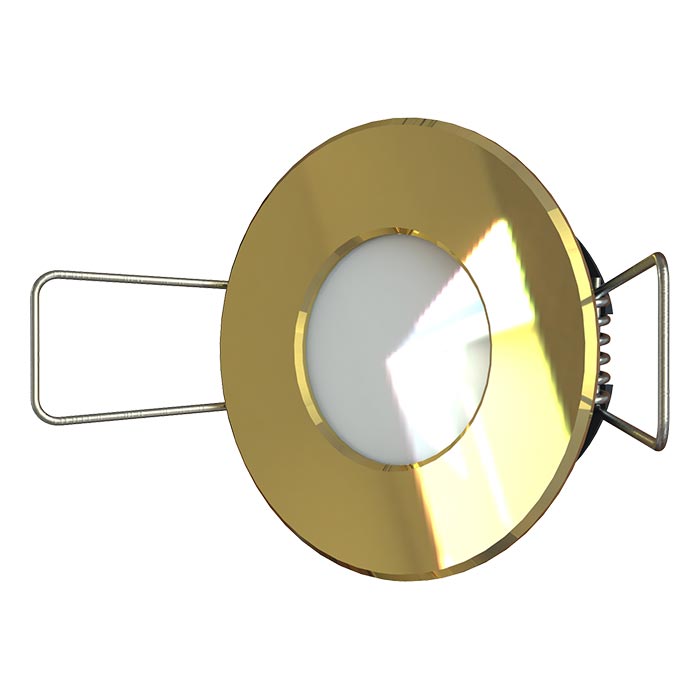

MSG Round, modern, polished gold (PVD) stainless steel
MSS Round, modern, satin stainless steel

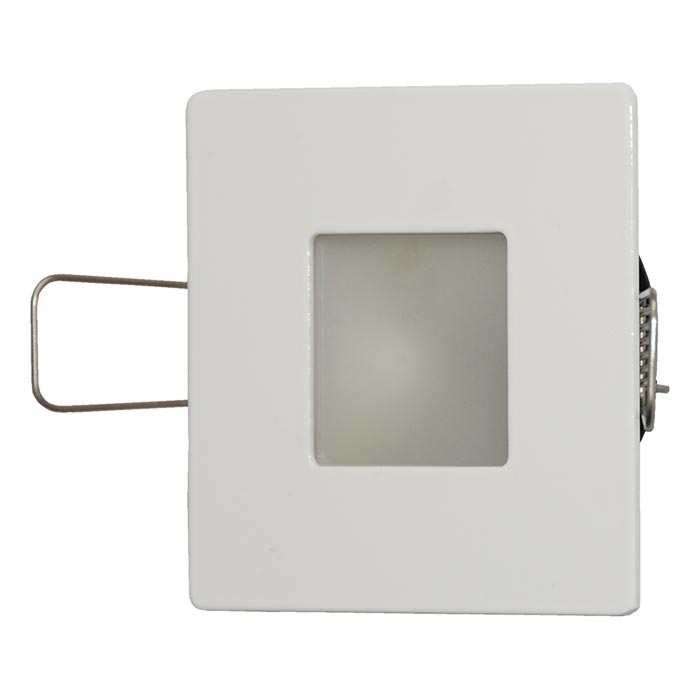

QMAW Square, modern, painted white aluminium
QMAB Square, modern, painted beige aluminium
QMSP Square, modern, polished stainless steel
QMSG Square, modern, polished gold (PVD) stainless steel
QMSS Square, modern, satin stainless steel

Technical Specifications

Power supply 12 – 24 Vdc, max. 130 mA
Lens angle 130°
Optical window High Grade Polycarbonate Glass
Luminous flux max. 150 lm (daylight white)
White color temperature 4500K (daylight) or 3000K (warm)
Casing Black anodized aluminium
Dimensions max. Ф58mm x 25mm
Mounting hole Ф48mm x 24mm
Weight Aluminium front shape 70g
Stainless steel front shape 100g
