EQUATOR MSR36240P

- Innovative Design
Stainless Steel Ultra-Thin Casing
36 Power LEDs Design
White, Blue, Green or RGB Multi-Color Lighting
High Grade Polycarbonate Glass Optical Window
Vacuum Metalized Reflector
Remote Control
Digital Dimming
- DMX512 Network Control
Polarity Protection
Transient Protection
Thermal Protection
- Wide Range Power Supply
Low Power Consumption
The EQUATOR ultra-thin compact underwater LED light with built-in driver is designed with 32 high-power LEDs for installation with optional cofferdam.
Single-color light control is enabled by using optional momentay switch or optional DMX512 interface MXU01 and PWM dimmer MDU13 with built-in ASTEL protocol.
Multi-color RGB light control of the EQUATOR series with dimming and changing of color of lighting manually or automatically through the complete rainbow spectrum is enabled by using optional momentary switch or optional DMX512 interface MXU01 with built-in ASTEL protocol.
Technical Specifications
Power supply | 24 Vdc, max. 3.4 A |
Lens Angle | 60° |
Optical window | High-grade polycarbonate glass |
Luminous flux | max. 8.300 lm (white) |
White color temperature | 6.000K – 10.000K |
Operating temperature | -10°C – +50°C |
Casing | Stainless steel (SAE316L) |
Protection | IP 68 |

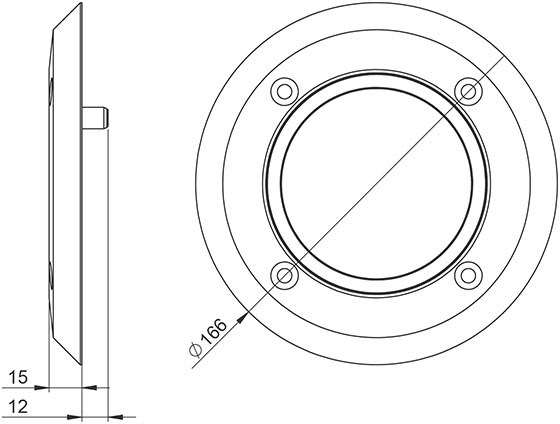

Dimensions | Ф166 x 15 mm |
Weight | 1.7 kg |
