ASTRA MRM0230 – MRM0340 – MRM0380 – MRM0625

RGBW CREE

  • Innovative design

  • Anodized Aluminium Casings

  • 2, 3 or 6 High-Power LEDs

  • Massive Face Shapes and Finishes

  • Warm White, Daylight White, Red, Green or Blue Lighting

  • Reflector with Holographic Diffuser

  • Microprocessor Control
  • Digital Dimming
  • DMX512 Network Control

  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply

  • Low Power Consumption

  • Simple Installation

TECHNICAL SPECIFICATIONS
GALLERY
DOWNLOADS

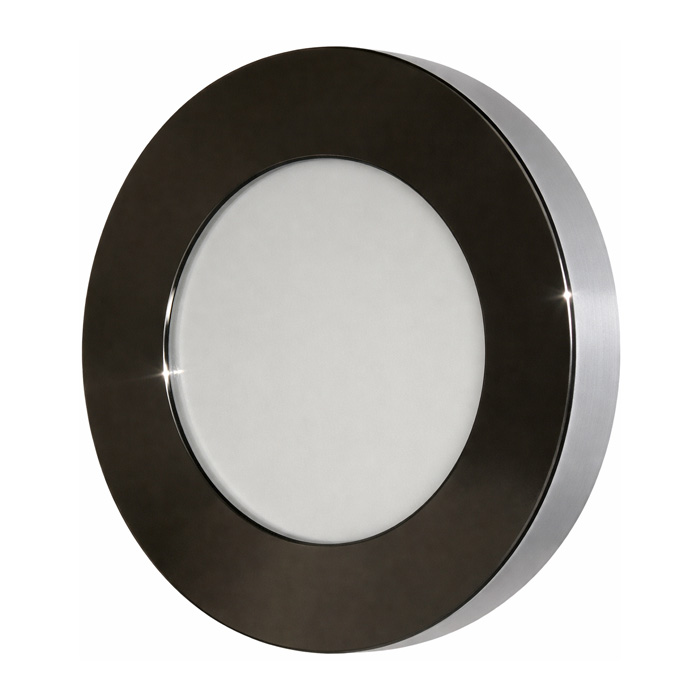

The ASTRA series of compact LED light designed with 2, 3 or 6 high-power LEDs with electronic driver built-in waterproof anodized aluminium casing for recessed mounting.

The new RGBW multi-color model delivers premium illumination quality with selectable white tones and multi-color management

Innovative electronic design with built-in microprocessor enables network connections and remote control with digital dimming.

Built-in ASTEL protocol enables complete lighting control by using optional DMX512 interface MXU01.

Advanced optical system with reflector and holographic diffuser allows perfect light spread. Different color temperature options offer perfect solutions in the interior and exterior.

Due to wide range of prestige massive face shapes made of alluminium or stainless steel the ASTRA is suitable to fit on luxury yachts and superyachts.

All models are designed for operating at extreme temperature and voltage conditions with thermal, transient and reverse polarity protections.

Control

I Internal dimming control, 2-wire system
E External dimming control, 3-wire system

Front shape

AW Painted white aluminium
AB Painted beige aluminium
SP Polished stainless steel
SG Polished gold (PVD) stainless steel
SS Satin stainless steel

Color of lighting

W warm white
D cool white
B blue
G green
R red
M RGBW multi-color
astra mrm

Technical Specifications

Power supply 12–24 Vdc, max. 500 mA/12Vdc or max. 260 mA/24Vdc (MRM0230)
12–24 Vdc, max. 800 mA/12Vdc or max. 420 mA/24Vdc (MRM0340)
12–24 Vdc, max. 800 mA/12Vdc or max. 420 mA/24Vdc (MRM0380)
12–24 Vdc, max. 650 mA/12Vdc or max. 350 mA/24Vdc (MRM0625)
Lens angle 130°
Optical window High grade polycarbonate glass
Luminous flux max. 530 lm (MRM0230)
max. 800 lm (MRM0340)
max. 1.300 lm (MRM0380)
max. 550 lm (MRM0625)
White color temperature 4500K (daylight) or 3000K (warm)
Casing Black anodized aluminium

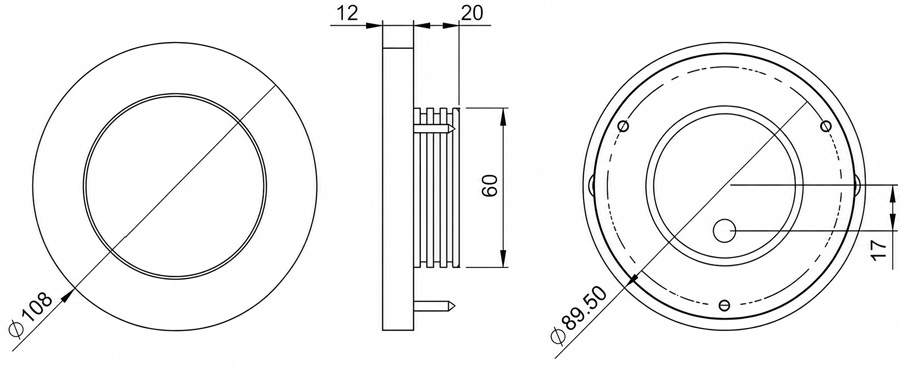

Dimensions Ø108 x 32mm
Mounting hole Ø61 x 22mm
Weight Aluminium front shape 240g
Stainless steel front shape 300g
